SuperSDK server-side interface document

** Note: This document can only be used for Yoozoo games.**

Login verification interface

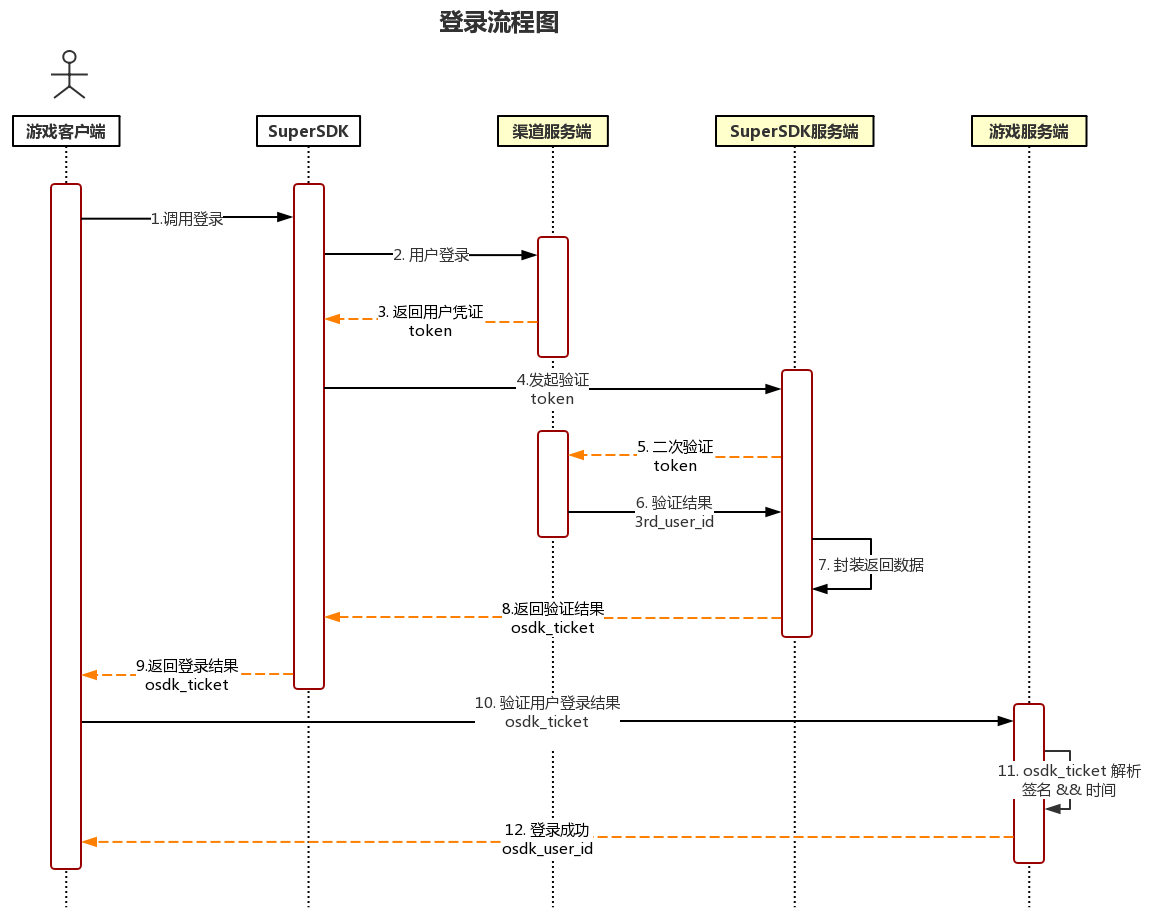

Login process

login

  1. The Game Client invokes the SuperSDK framework Login interface

  2. Channel login interface pops up, and the channel SDK internally initiates login request verification to the channel server.

  3. User logs in successfully, and channel SDK obtains the token returned by the channel server.

  4. SuperSDK submits the token which obtained from the channel SDK to the SuperSDK server for verification.

  5. After receiving the data request from SuperSDK，the SuperSDK server will run the user login verification on the channel server.

  6. SuperSDK server receives the verification result from the channel server

  7. SuperSDK server encapsulates the channel returned information and user information (osdk_ticket)

  8. SuperSDK server returns the encapsulated data (osdk_ticket) to SuperSDK

  9. SuperSDK handles the encrypted data (osdk_ticket) to the game client

  10. TheGame Client forwards the encrypted data (osdk_ticket)to the ** Game Server**

  11. TheGame Server analyzes and verify the encrypted data, and extract the required parameters.

  12. TheGame Server sents “login successfully ” back to the client

Note 1: The above red word steps require game integration

Osdk_ticket parsing algorithm

1. Base64 decoding the osdk_ticket

2. Get the sign, user_id, login_sdk_name, time and other values (refer to Example 1), verify the sign and the signature obtained by the signature algorithm, where key is obtained in the configuration package tool.

Note 2: After the game is added in the SuperSDK packaging tool, game_secret can be viewed in the game configuration.

  1. Verify the generation time (time) of osdk_ticket, recomended no more than 3 minutes (180s)

  2. For the signature algorithm, please see[Appendix 1: Sign Algorithm

osdk_ticket 参数说明

Name of Parameters Type Description
osdk_game_id string SuperSDK assigned game number
user_id string User unique identifier returned by 3rd Server
login_sdk_name string Third-party co-operator name
account_system_id string User account system number (user system is divided by the co-operation platform, one user account system number for each co-operation platform, the specific number can refer to the appendix 3: user account system number list)
osdk_user_id string User unique identifier, format：osdk_user_id = account_system_id + _ + user_id
channel_id string Channel number
extend string Extended parameters, configured in the packaging tool
time int Sign generated timestamp
ip string IP address requested by the client
sign string ignature, signature algorithm, please see[ Appendix 1: Signature Algorithm
// 范例1：
{
    "osdk_game_id": "132435",
    "user_id": "837263",
    "account_system_id": "0060001",
    "osdk_user_id": "0060001_837263",
    "login_sdk_name": "360",
    "channel_id": "0",
    "extend":"",
    "ip": "128.1.1.10",
    "time": 149382731,
    "sign": "21232f297a57a5a743894a0e4a801fc3"
}

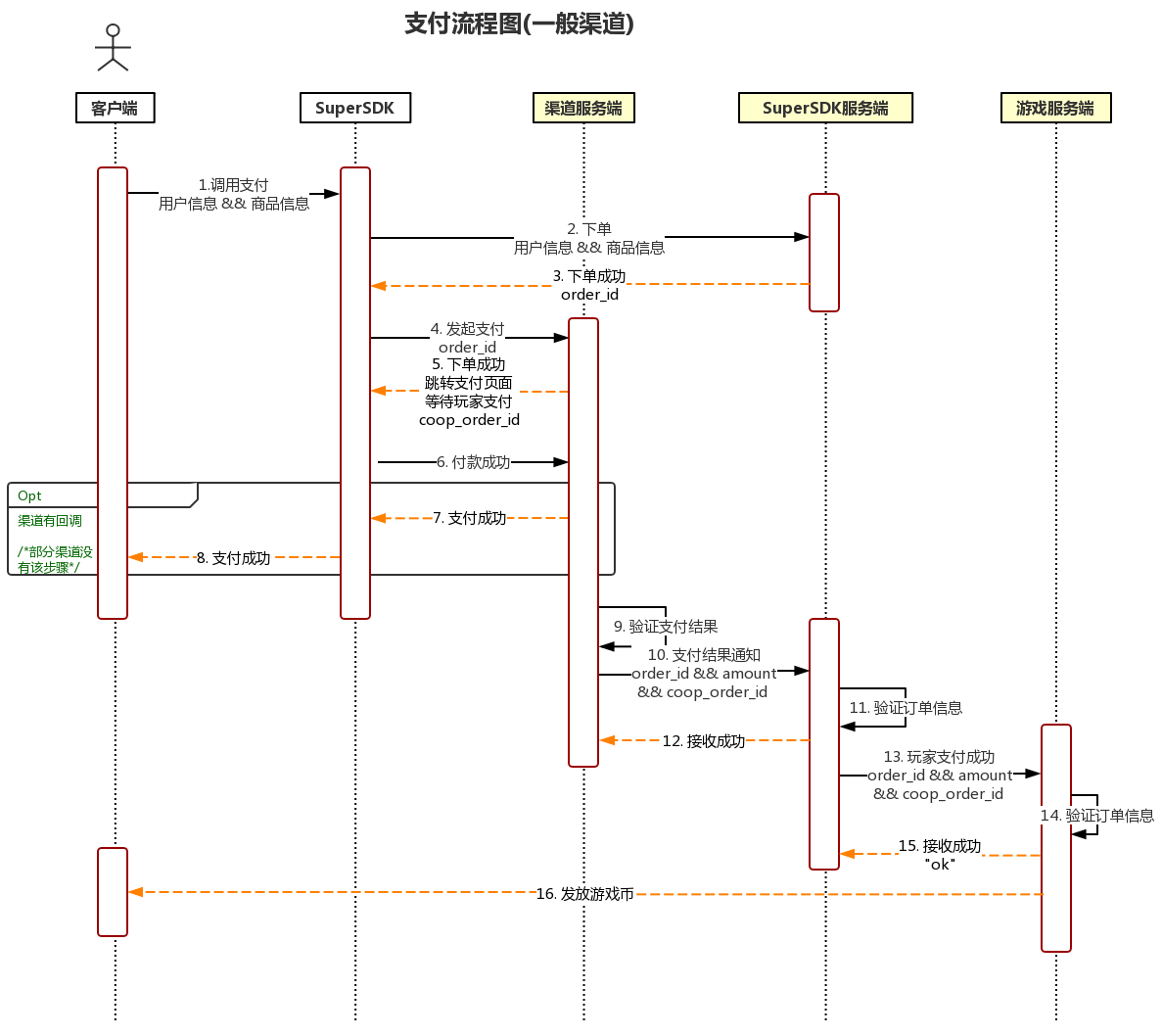

Payment Process

flow chart

Pay

  1. TheGame Client invokes the SuperSDK payment interface pay。

  2. SuperSDK requests the  SuperSDK Server Order interface.

  3. SuperSDK server returns the transaction order number.

4.

  1. SuperSDK invokes the channel SDK payment interface, the channel SDK requests the channel server to initiate payment; the channel server returns to the channel SDK, place the order successfully, and the channel SDK invokes the payment page to wait for the player to pay.

6.

  1. Channel SDK requests the channel server, the player pays successfully; the channel SDK returns SuperSDK payment success; SuperSDKreturns the game payment statuscan not use this information to judge whether the payment is successful, the specific order status is subject to the SuperSDK server notification.。

9.

  1. he channel server asynchronously verifies the player’s payment result; the channel server notifies the SuperSDK player that the payment is successful;

11.

  1. SuperSDK verift the order; SuperSDK returns channel verification result;

  2. SuperSDK server invokes the game delivery interface (this notification address needs to be configured by colleagues from platform)

  3. Game server Verify order information.

  4. Game server Returns the SuperSDK server verification result.

  5. Game server Notification Game client the result of player’s payment.

Note 3: The above red words steps require game integration

Flowchart the seventh step interface (payment notice)

Description:

view the payment test self-test,complete it before testing payment, communication costs can be reduced.

Interface address: Game’s notification address consists of two parts: 1. The game notification address configured on the packaging tool (1. http://{domain}/server/pay) 2. Plus the server_url configured in the operation and maintenance system ( 2. game.youzu.com) The final notification to the game server is: http://game.youzu.com/server/pay

HTTP request: POST

Coding: UTF-8

Request parameters:

Name of Parameter Type Must fill in Description
order_id string true superSDK order number, beginning with OS, DS, in some cases there may be repeated notifications, the game developer needs to de-weighted according to this field to prevent repeated diamonds.
coo_order_id string true Third party co-operator order number
user_id string true Third party co-operator user ID
op_id int true The serial number of the co-operation platform is consistent with the protection of the operation and maintenance system.
account_system_id string true User account system number (user system is divided by the co-operation platform, one user account system number for each co-operation platform; the specific number can refer to the Appendix 3: user account system number list)
osdk_user_id string true User ID Format:osdk_user_id=account_system_id + _ + user_id
amount float true The total amount paid by the player, currency CNY
server_id string true Game server number passed in when the App client recharges
product_id string false Item number passed in when the App client recharges
product_name string false Product name passed in when the App client recharges
game_id integer true Game number passed in when the App client recharges
game_role_id string false Game role number passed in when the App client recharges
pay_status integer true For the game, regardless of the value of this field, you need to send the player to the game currency (diamond, gold coins), but when sey to 0 (json {"0": "virtual payment", "1":"real payment"}) the order will not participate in reconciliation
pay_time integer true The UNIX timestamp of the payment which is noticed by the co-operator (from 00:00 on January 01, 1970, the total number of seconds until now
channel_id string false Channel number
sdk_pay_extend string false Extended parameters passed by the sdk client when recharging
custom_data string false Channel association custom parameters
sign string true Signature, signature verification refer to sign algorithm, please seeAppendix 1: Signature algorithm，key is game server server_key, can be obtained through the operation and maintenance game interface.

Request example

In the official environment, the signature key needs to be obtained from the operation and maintenance system.

header:

Content-type: application/x-www-form-urlencoded

body：

account_system_id=0060000
amount=6.00
channel_id=0
coo_order_id=OS_VMUMYXGRY4JJ42IY3
custom_data=2150%7C360%7Copgameid
game_id=360
game_role_id=68719487024
op_id=2150
order_id=OS_VMUMYXGRY4JJ42IY3
osdk_user_id=0060000_3507
pay_status=1
pay_time=1562071618
product_id=gold6
product_name=60%E5%85%83%E5%AE%9D
sdk_pay_extend=%7B%22level%22%3A23%2C%22opSid%22%3A%222150%22%2C%22server_id%22%3A%221652440001%22%2C%22role_id%22%3A68719487024%2C%22roleCreateTime%22%3A1561962929%2C%22server_name%22%3A%22%E5%A4%96%E7%BD%91QA1%E6%9C%8D%22%2C%22opgameid%22%3A%22opgameid%22%2C%22role_name%22%3A%22rel1%22%2C%22vip_grade%22%3A0%2C%22account%22%3A%22006
server_id=1652440001
user_id=3507
sign=db2f354bf14026f554818ca346ab39fd

key:lwKdyXCpjScn00Ny

Response code

The game returns the json format result, including status and msg field

{
    "status":1,
    "msg":"支付成功"
}
status msg
1 payment successful
-1 Signature information error
-2 Product information error
-3 Character information error
-4 Server information error
-5 Other errors
-6 Duplicate order

The game developer can modify the contents of msg to increase the accuracy of the error. Msg supports up to 100 characters

Notification mechanism

After recharging, the SuperSDK server  will send the recharge result to the game server through the payment notification address only if the recharge payment is successful. After receiving the recharge notification from the SuperSDK server, the game server responds according to the processing result.

If and only if the network request fails or status=-1 (signature error), SuperSDK Server will try to notify multiple times! ! !

Repeat notification

The payment notification will be repeated, and thegame server should prevent adding money to players multiple times due to multiple payment notifications.Thegame server can use order_id as the order unique identifier.

Receiving messages or duplicate notification normally, you need to return it as success. Otherwise, the superSDK server will determine it as unsuccess and continously sent notifications.。

The repeat notification interval is: 1 minute, 4 minutes, 9 minutes, 16 minutes, 25 minutes, 36 minutes, 49 minutes, 64 minutes, 81 minutes, 100 minutes, totally 10 times, until there is a feedback message that the reception is successful, or After 10 times of transmission, the periodic transmission is ended.

Please see Appendix 1: Signature Algorithm

Payment notification game interface self-test tool

Self-test tool address：http://qt.youzu.com/Home/SuperSdk/notify

Signature algorithm

1.  All parameters are sorted in ascending alphabetical order by parameter names, and sign does not participate in sign;

2.  Combine the sorted parameter name with the corresponding parameter value (non urlencode value) with &, such as: a=1, b=2, c=3 stitching to get a=1&b=2&c=3;

3.  Then directly connect the key value, run a md5 operation and convert to lowercase to get the sign waitSign value.

4.  Compare waitSign with the sign in the parameter, if they are the same, means successful.

5.  The parameter name and the number of parameters may change. In this case, it is better not to write the parameters to constant. You can directly sign in all the parameters obtained but except sign.

6.  If the value corresponding to the key is empty, do not sign it. See the example below: key:b

Example: Received data is in UTF-8 format and it has been encoded using urlencode: a=%e5%85%83%e5%ae%9d&c=1&b=&sign=5, and:key=k waitSign=md5(“a= Ingot &b=&c=1k”)

Code example:

function sign($data, $key)
{
    ksort($data);
    $str = array();
    foreach ($data as $k => $v)
    {
        $str[] = $k . "=" . urldecode($v);
    }
    $strData = implode("&", $str) . $key;
    return md5($strData);
}
